Visualising your designs
Our Design Visualiser is a light-weight tool that runs smoothly, allowing you to view your design results in detail, focus on hot spots and tailor provided reinforcement to suit the design requirements.
It's the perfect tool to capture impressive visualisations of your design to show colleagues and clients, and to include in design reports.
In alpha — and already useful

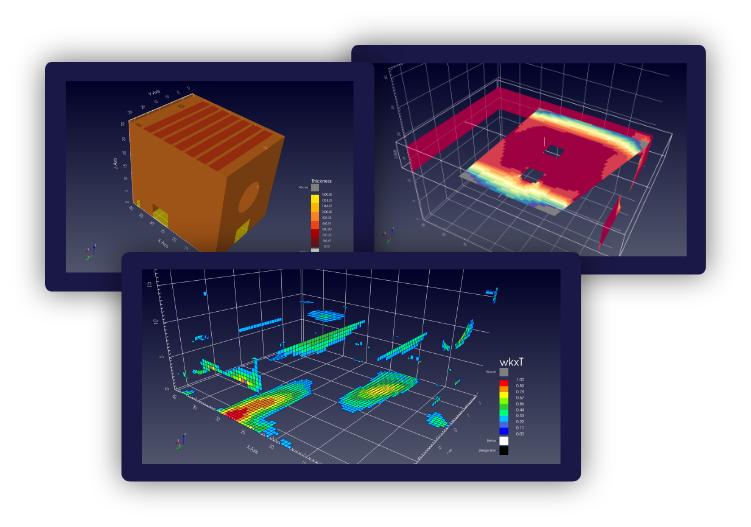

Value filtering
Filter elements based on value to isolate exactly what matters.
Section & cut
Manual sectioning and cutting to look inside the structure.
Colour schemes
Varying colour schemes for clear, report-ready output.
Element inspection
Investigate individual element results in place.
View customisation
Set up the views your reports and clients need.
Included with Ultimate
Bundled with every Shell Element Designer Ultimate license.
From results file to insight in seconds
Open the model file produced by your design run, and explore. No exports, no conversions, no waiting.
Get the trial
